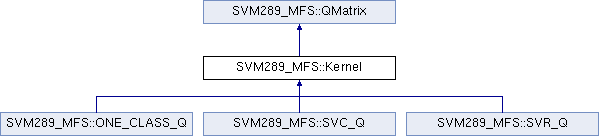

Inheritance diagram for SVM289_MFS::Kernel:

Public Member Functions
	Kernel (const FeatureVectorList &_x, const FeatureNumList &_selFeatures, const svm_parameter &_param, RunLog &_log)

virtual	~Kernel ()

virtual Qfloat *	get_Q (kkint32 column, kkint32 len) const =0

virtual Qfloat *	get_QD () const =0

virtual void	swap_index (kkint32 i, kkint32 j)

Public Member Functions inherited from SVM289_MFS::QMatrix
virtual	~QMatrix ()

Static Public Member Functions
static double	DotStatic (const FeatureVector &px, const FeatureVector &py, const FeatureNumList &selFeatures)

static double	k_function (const FeatureVector &x, const FeatureVector &y, const svm_parameter &param, const FeatureNumList &selFeatures)

Protected Attributes
double(Kernel::*	kernel_function )(kkint32 i, kkint32 j) const

Detailed Description

Definition at line 826 of file svm2.cpp.

Constructor & Destructor Documentation

SVM289_MFS::Kernel::Kernel	(	const FeatureVectorList &	_x,
		const FeatureNumList &	_selFeatures,
		const svm_parameter &	_param,
		RunLog &	_log
	)

Definition at line 917 of file svm2.cpp.

References SVM289_MFS::svm_parameter::coef0, SVM289_MFS::svm_parameter::degree, KKMLL::FeatureVectorList::FeatureVectorList(), SVM289_MFS::svm_parameter::gamma, Kernel(), kernel_function, SVM289_MFS::svm_parameter::kernel_type, SVM289_MFS::LINEAR, KKMLL::FeatureNumList::NumSelFeatures(), KKMLL::FeatureNumList::operator[](), SVM289_MFS::POLY, SVM289_MFS::PRECOMPUTED, SVM289_MFS::RBF, and SVM289_MFS::SIGMOID.

Referenced by Kernel().

                             :

    coef0          (_param.coef0),
    degree         (_param.degree),
    gamma          (_param.gamma),
    kernel_type    (_param.kernel_type),
    l              (_x.QueueSize ()),
    numSelFeatures (0),
    preComputed    (NULL),
    selFeatures    (NULL),
    x              (NULL)

 {
   x = new FeatureVectorList (_x, false);

   numSelFeatures = _selFeatures.NumSelFeatures ();
   selFeatures = new kkint32[numSelFeatures];
   for  (kkint32 zed = 0;  zed < numSelFeatures;  zed++)
     selFeatures[zed] = _selFeatures[zed];

   switch  (kernel_type)
   {
     case Kernel_Type::LINEAR:         kernel_function = &Kernel::kernel_linear;    break;
     case Kernel_Type::POLY:           kernel_function = &Kernel::kernel_poly;      break;
     case Kernel_Type::RBF:            kernel_function = &Kernel::kernel_rbf;       break;
     case Kernel_Type::SIGMOID:        kernel_function = &Kernel::kernel_sigmoid;   break;

     case Kernel_Type::PRECOMPUTED:
       {
         kkint32  z1 = 0;
         kkint32  z2 = 0;
         kernel_function = &Kernel::kernel_precomputed;
         preComputed = new float*[l];
         for  (z1 = 0;  z1 < l;  z1++)
         {
           preComputed[z1] = new float[l];
           for  (z2 = 0;  z2 < l;  z2++)
             preComputed[z1][z2] = 0.0f;
         }
       }
       break;
   }

   if  (kernel_type == Kernel_Type::RBF)
   {
     x_square = new double[l];
     for  (kkint32 i = 0;  i < l;  i++)
       x_square[i] = dot ((*x)[i], (*x)[i]);
   }

   else
   {
     x_square = 0;
   }
 }

SVM289_MFS::Kernel::~Kernel ( )

virtual

Definition at line 980 of file svm2.cpp.

 {
   delete[] selFeatures;    selFeatures = NULL;
   delete[] x_square;       x_square    = NULL;

   if  (preComputed)
   {
     kkint32  n = x->QueueSize ();
     kkint32 z1 = 0;
     for  (z1 = 0;  z1 < l;  z1++)
       delete  preComputed[z1];
     delete  preComputed;
     preComputed = NULL;
   }

   delete  x;
   x = NULL;
 }

Member Function Documentation

double SVM289_MFS::Kernel::DotStatic	(	const FeatureVector &	px,
		const FeatureVector &	py,
		const FeatureNumList &	selFeatures
	)

static

Definition at line 1024 of file svm2.cpp.

References KKMLL::FeatureVector::FeatureData(), KKMLL::FeatureNumList::NumSelFeatures(), and KKMLL::FeatureNumList::operator[]().

Referenced by k_function().

 {
   kkint32  numFeatures = selFeatures.NumSelFeatures ();

   double  sum = 0;
   kkint32  fn = 0;
   kkint32  idx = 0;

   const float*  fvX  = px.FeatureData ();
   const float*  fvY  = py.FeatureData ();

   for  (idx = 0;  idx < numFeatures;  idx++)
   {
     fn = selFeatures[idx];
     sum += fvX[fn] * fvY[fn];
   }

   return sum;
 }  /* dot */

virtual Qfloat* SVM289_MFS::Kernel::get_Q	(	kkint32	column,
		kkint32	len
	)		const

pure virtual

Implements SVM289_MFS::QMatrix.

Implemented in SVM289_MFS::SVR_Q, SVM289_MFS::ONE_CLASS_Q, and SVM289_MFS::SVC_Q.

virtual Qfloat* SVM289_MFS::Kernel::get_QD ( ) const

pure virtual

Implements SVM289_MFS::QMatrix.

Implemented in SVM289_MFS::SVR_Q, SVM289_MFS::ONE_CLASS_Q, and SVM289_MFS::SVC_Q.

double SVM289_MFS::Kernel::k_function	(	const FeatureVector &	x,
		const FeatureVector &	y,
		const svm_parameter &	param,
		const FeatureNumList &	selFeatures
	)

static

Definition at line 1053 of file svm2.cpp.

References SVM289_MFS::svm_parameter::coef0, SVM289_MFS::svm_parameter::degree, DotStatic(), KKMLL::FeatureVector::FeatureData(), SVM289_MFS::svm_parameter::gamma, SVM289_MFS::svm_parameter::kernel_type, SVM289_MFS::LINEAR, KKMLL::FeatureNumList::NumSelFeatures(), KKMLL::FeatureNumList::operator[](), SVM289_MFS::POLY, SVM289_MFS::powi(), SVM289_MFS::PRECOMPUTED, SVM289_MFS::RBF, and SVM289_MFS::SIGMOID.

 {
   switch  (param.kernel_type)
   {
     case Kernel_Type::LINEAR:
       return DotStatic(x, y, selFeatures);

     case Kernel_Type::POLY:
       return powi (param.gamma * DotStatic (x, y, selFeatures) + param.coef0,param.degree);

     case Kernel_Type::RBF:
     {
       kkint32  numSelFeatures = selFeatures.NumSelFeatures ();
       kkint32  fn  = 0;
       kkint32  idx = 0;
       const float*  fvX = x.FeatureData ();
       const float*  fvY = y.FeatureData ();

       double sum = 0;
       for  (idx = 0;  idx < numSelFeatures;  idx++)
       {
         fn = selFeatures[idx];
         double d = fvX[fn] - fvY[fn];
         sum += d * d;
       }

       return exp (-param.gamma * sum);
     }

     case Kernel_Type::SIGMOID:
       return tanh(param.gamma * DotStatic (x, y, selFeatures) + param.coef0);

     case Kernel_Type::PRECOMPUTED:  //x: test (validation), y: SV
       {
         cerr << endl
              << "SVM289_MFS::Kernel::k_function   ***ERROR*** does not support 'PRECOMPUTED'." << endl
              << endl;
         return 0;
       }

     default:
       return 0;  // Unreachable
   }
 }  /* k_function */

virtual void SVM289_MFS::Kernel::swap_index	(	kkint32	i,
		kkint32	j
	)

inlinevirtual

Implements SVM289_MFS::QMatrix.

Reimplemented in SVM289_MFS::SVR_Q, SVM289_MFS::ONE_CLASS_Q, and SVM289_MFS::SVC_Q.

Definition at line 850 of file svm2.cpp.

Referenced by SVM289_MFS::SVC_Q::swap_index(), and SVM289_MFS::ONE_CLASS_Q::swap_index().

   {
     //swap (x[i], x[j]);
     x->SwapIndexes (i, j);
     if  (x_square)
       swap (x_square[i], x_square[j]);
   }

Member Data Documentation

double(Kernel::* SVM289_MFS::Kernel::kernel_function) (kkint32 i, kkint32 j) const

protected

Definition at line 859 of file svm2.cpp.

Referenced by SVM289_MFS::SVC_Q::get_Q(), SVM289_MFS::ONE_CLASS_Q::get_Q(), SVM289_MFS::SVR_Q::get_Q(), Kernel(), SVM289_MFS::ONE_CLASS_Q::ONE_CLASS_Q(), SVM289_MFS::SVC_Q::SVC_Q(), and SVM289_MFS::SVR_Q::SVR_Q().

The documentation for this class was generated from the following file:

C:/Users/Kurt/GitHub/KSquareLibraries/KKMachineLearning/svm2.cpp
