Base class for all Morphological operations. More...

#include <MorphOp.h>

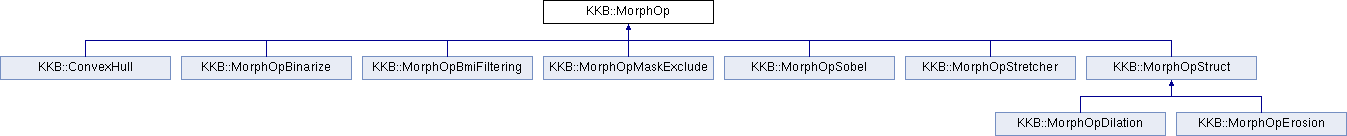

Inheritance diagram for KKB::MorphOp:

Public Types
enum	MaskTypes : int { MaskTypes::CROSS3 = 0, MaskTypes::CROSS5 = 1, MaskTypes::SQUARE3 = 2, MaskTypes::SQUARE5 = 3, MaskTypes::SQUARE7 = 4, MaskTypes::SQUARE9 = 5, MaskTypes::SQUARE11 = 6 }

enum	OperationType { OperationType::Null, OperationType::Binarize, OperationType::BmiFiltering, OperationType::ConvexHull, OperationType::Dilation, OperationType::Erosion, OperationType::MaskExclude, OperationType::SobelEdgeDetection, OperationType::Stretcher }

enum	StructureType : int { StructureType::Null, StructureType::stCross, StructureType::stSquare }

Public Member Functions
	MorphOp ()

virtual	~MorphOp ()

virtual OperationType	Operation () const =0

OperationType	OperationTypeFromStr (const KKB::KKStr &_operationStr)

KKB::KKStr	OperationTypeToStr (OperationType _operation)

virtual RasterPtr	PerformOperation (Raster const *_image)=0

Static Public Member Functions
static kkint32	Biases (MaskTypes mt)

static StructureType	MaskShapes (MaskTypes mt)

Protected Member Functions
bool	BackgroundPixel (uchar pixel) const

bool	BackgroundPixel (kkint32 row, kkint32 col) const

bool	ForegroundPixel (uchar pixel) const

bool	ForegroundPixel (kkint32 row, kkint32 col) const

void	SetSrcRaster (RasterConstPtr _srcRaster)

Protected Attributes
uchar	backgroundPixelTH

uchar	backgroundPixelValue

uchar const	srcBlue

uchar const *	srcBlueArea

bool	srcColor

uchar const	srcGreen

uchar const *	srcGreenArea

kkint32	srcHeight

RasterConstPtr	srcRaster

uchar const	srcRed

uchar const *	srcRedArea

kkint32	srcWidth

Static Protected Attributes
static kkint32	biases []

static StructureType	maskShapes []

Detailed Description

Base class for all Morphological operations.

Creates a image where the only pixels that are passed thru are the ones that would be removed by the specified mask when a Open-Dilatation operation are performed.

Meant to be the base class to all Morphological operators.

It is assumed that all morphologocal operations will be working with a source image and returning a new modified image; the atcual operation is to be perfomed by the "PerformOperation" metho where you pass in a poiter to the source Image/ Raster. The the derived class would then call "SetSrcRaster" to intialize the base class "MorphOp" with pointers to the source image.

See also: KKB::Raster

Definition at line 44 of file MorphOp.h.

Member Enumeration Documentation

enum KKB::MorphOp::MaskTypes : int

strong

Enumerator
CROSS3
CROSS5
SQUARE3
SQUARE5
SQUARE7
SQUARE9
SQUARE11

Definition at line 72 of file MorphOp.h.

                          : int
     {
       CROSS3   = 0,
       CROSS5   = 1,
       SQUARE3  = 2,
       SQUARE5  = 3,
       SQUARE7  = 4,
       SQUARE9  = 5,
       SQUARE11 = 6
     };

enum KKB::MorphOp::OperationType

strong

Enumerator
Null
Binarize
BmiFiltering
ConvexHull
Dilation
Erosion
MaskExclude
SobelEdgeDetection
Stretcher

Definition at line 47 of file MorphOp.h.

     {
       Null,
       Binarize,
       BmiFiltering,
       ConvexHull,
       Dilation,
       Erosion,
       MaskExclude,
       SobelEdgeDetection,
       Stretcher
     };

enum KKB::MorphOp::StructureType : int

strong

Enumerator
Null
stCross
stSquare

Definition at line 64 of file MorphOp.h.

                              : int
     {
        Null,
        stCross,
        stSquare
     };

Constructor & Destructor Documentation

MorphOp::MorphOp ( )

Definition at line 73 of file MorphOp.cpp.

References backgroundPixelTH, backgroundPixelValue, srcBlue, srcBlueArea, srcColor, srcGreen, srcGreenArea, srcHeight, srcRaster, srcRed, srcRedArea, and srcWidth.

Referenced by KKB::ConvexHull::ConvexHull(), KKB::MorphOpBinarize::MorphOpBinarize(), KKB::MorphOpBmiFiltering::MorphOpBmiFiltering(), KKB::MorphOpMaskExclude::MorphOpMaskExclude(), KKB::MorphOpStretcher::MorphOpStretcher(), and KKB::MorphOpStruct::MorphOpStruct().

                  :
     backgroundPixelTH    (31),
     backgroundPixelValue (0),
     srcRaster            (NULL),
     srcRedArea           (NULL),
     srcGreenArea         (NULL),
     srcBlueArea          (NULL),
     srcRed               (NULL),
     srcGreen             (NULL),
     srcBlue              (NULL),
     srcColor             (false),
     srcHeight            (0),
     srcWidth             (0)
 {
 }

MorphOp::~MorphOp ( )

virtual

Definition at line 91 of file MorphOp.cpp.

92 {

93 }

Member Function Documentation

bool MorphOp::BackgroundPixel ( uchar pixel ) const

protected

Definition at line 171 of file MorphOp.cpp.

References backgroundPixelTH.

Referenced by KKB::MorphOpStruct::Fit(), KKB::MorphOpStruct::FitBackgroundCount(), and KKB::MorphOpDilation::PerformOperation().

 {
   return (pixel <= backgroundPixelTH);
 }  /* BackgroundPixel */

bool MorphOp::BackgroundPixel	(	kkint32	row,
		kkint32	col
	)		const

protected

Definition at line 178 of file MorphOp.cpp.

References backgroundPixelTH, srcGreen, srcHeight, and srcWidth.

 {
   if  ((row < 0)           ||
        (row >= srcHeight)  ||
        (col < 0)           ||
        (col >= srcWidth)   ||
        (srcGreen == NULL)
       )
     return false;

   return (srcGreen[row][col] <= backgroundPixelTH);
 }  /* BackgroundPixel */

kkint32 MorphOp::Biases ( MaskTypes mt )

static

Definition at line 44 of file MorphOp.cpp.

References biases, CROSS3, and SQUARE9.

Referenced by KKB::Raster::Erosion(), KKB::Raster::ErosionBoundary(), KKB::Raster::ErosionChanged(), KKB::Raster::ErosionChanged1(), and KKB::Raster::Raster().

 {
   if  (mt < MaskTypes::CROSS3)
     mt = MaskTypes::CROSS3;

   else if  (mt > MaskTypes::SQUARE9)
     mt = MaskTypes::SQUARE9;

   return  biases[(int)mt];
 }

bool MorphOp::ForegroundPixel ( uchar pixel ) const

protected

Definition at line 195 of file MorphOp.cpp.

References backgroundPixelTH.

Referenced by KKB::MorphOpStruct::HitForegroundCount(), KKB::MorphOpDilation::PerformOperation(), and KKB::MorphOpErosion::PerformOperation().

 {
   return (pixel > backgroundPixelTH);
 }  /* ForegroundPixel */

bool MorphOp::ForegroundPixel	(	kkint32	row,
		kkint32	col
	)		const

protected

Definition at line 202 of file MorphOp.cpp.

References backgroundPixelTH, srcGreen, srcHeight, and srcWidth.

Referenced by KKB::ConvexHull::Store().

 {
   if  ((row < 0)           ||
        (row >= srcHeight)  ||
        (col < 0)           ||
        (col >= srcWidth)   ||
        (srcGreen == NULL)
       )
     return false;

   return (srcGreen[row][col] > backgroundPixelTH);
 }  /* ForegroundPixel */

StructureType MorphOp::MaskShapes ( MaskTypes mt )

static

Definition at line 57 of file MorphOp.cpp.

References CROSS3, maskShapes, and SQUARE9.

Referenced by KKB::Raster::Erosion(), KKB::Raster::ErosionBoundary(), KKB::Raster::ErosionChanged(), and KKB::Raster::ErosionChanged1().

 {
   if  (mt < MaskTypes::CROSS3)
     mt = MaskTypes::CROSS3;

   else if  (mt > MaskTypes::SQUARE9)
     mt = MaskTypes::SQUARE9;

   return  maskShapes[(int)mt];
 }

virtual OperationType KKB::MorphOp::Operation ( ) const

pure virtual

Implemented in KKB::ConvexHull, KKB::MorphOpMaskExclude, KKB::MorphOpStretcher, KKB::MorphOpBinarize, KKB::MorphOpStruct, KKB::MorphOpDilation, KKB::MorphOpErosion, KKB::MorphOpBmiFiltering, and KKB::MorphOpSobel.

MorphOp::OperationType MorphOp::OperationTypeFromStr ( const KKB::KKStr & _operationStr )

Definition at line 123 of file MorphOp.cpp.

References Binarize, BmiFiltering, ConvexHull, KKB::KKStr::EqualIgnoreCase(), Erosion, MaskExclude, Null, and Stretcher.

 {
   if  (_operationStr.EqualIgnoreCase ("Stretcher"))
     return  OperationType::Stretcher;

   else if  (_operationStr.EqualIgnoreCase ("Binarize"))
     return  OperationType::Binarize;

   else if  (_operationStr.EqualIgnoreCase ("BmiFiltering"))
     return  OperationType::BmiFiltering;

   else if  (_operationStr.EqualIgnoreCase ("ConvexHull"))
     return  OperationType::ConvexHull;

   else if  (_operationStr.EqualIgnoreCase ("Erosion"))
     return  OperationType::Erosion;

   else if  (_operationStr.EqualIgnoreCase ("MaskExclude"))
     return  OperationType::MaskExclude;

   else
     return  OperationType::Null;
 }

KKB::KKStr MorphOp::OperationTypeToStr ( OperationType _operation )

Definition at line 97 of file MorphOp.cpp.

References BmiFiltering, ConvexHull, Dilation, Erosion, MaskExclude, and Stretcher.

 {
   if  (_operation == OperationType::Stretcher)
     return "Stretcher";

   else if  (_operation == OperationType::BmiFiltering)
     return "BmiFiltering";

   else if  (_operation == OperationType::ConvexHull)
     return "ConvexHull";

   else if  (_operation == OperationType::Dilation)
     return "Dilation";

   else if  (_operation == OperationType::Erosion)
     return "Erosion";

   else if  (_operation == OperationType::MaskExclude)
     return "MaskExclude";

   else
     return "NULL";
 }

virtual RasterPtr KKB::MorphOp::PerformOperation ( Raster const * _image )

pure virtual

Implemented in KKB::MorphOpSobel.

void MorphOp::SetSrcRaster ( RasterConstPtr _srcRaster )

protected

Definition at line 149 of file MorphOp.cpp.

References backgroundPixelTH, KKB::Raster::BackgroundPixelTH(), backgroundPixelValue, KKB::Raster::BackgroundPixelValue(), KKB::Raster::Blue(), KKB::Raster::BlueArea(), KKB::Raster::Color(), KKB::Raster::Green(), KKB::Raster::GreenArea(), KKB::Raster::Height(), KKB::Raster::Red(), KKB::Raster::RedArea(), srcBlue, srcBlueArea, srcColor, srcGreen, srcGreenArea, srcHeight, srcRaster, srcRed, srcRedArea, srcWidth, and KKB::Raster::Width().

Referenced by KKB::ConvexHull::Filter(), KKB::MorphOpSobel::PerformOperation(), KKB::MorphOpBmiFiltering::PerformOperation(), KKB::MorphOpDilation::PerformOperation(), KKB::MorphOpErosion::PerformOperation(), KKB::MorphOpBinarize::PerformOperation(), KKB::MorphOpStretcher::PerformOperation(), KKB::MorphOpMaskExclude::PerformOperation(), and KKB::ConvexHull::PerformOperation().

 {
   srcRaster = _srcRaster;

   srcColor   = srcRaster->Color  ();
   srcHeight  = srcRaster->Height ();
   srcWidth   = srcRaster->Width  ();

   backgroundPixelTH    = srcRaster->BackgroundPixelTH    ();
   backgroundPixelValue = srcRaster->BackgroundPixelValue ();

   srcRedArea   = srcRaster->RedArea   ();
   srcGreenArea = srcRaster->GreenArea ();
   srcBlueArea  = srcRaster->BlueArea  ();

   srcRed   = srcRaster->Red   ();
   srcGreen = srcRaster->Green ();
   srcBlue  = srcRaster->Blue  ();
 }  /* SetSrcRaster */

Member Data Documentation

uchar KKB::MorphOp::backgroundPixelTH

protected

Definition at line 109 of file MorphOp.h.

Referenced by BackgroundPixel(), ForegroundPixel(), MorphOp(), and SetSrcRaster().

uchar KKB::MorphOp::backgroundPixelValue

protected

Definition at line 110 of file MorphOp.h.

Referenced by MorphOp(), and SetSrcRaster().

kkint32 MorphOp::biases

staticprotected

Initial value:

Definition at line 126 of file MorphOp.h.

Referenced by Biases().

StructureType MorphOp::maskShapes

staticprotected

Initial value:

= {StructureType::stCross,
                                        StructureType::stCross,
                                        StructureType::stSquare,
                                        StructureType::stSquare,
                                        StructureType::stSquare,
                                        StructureType::stSquare,
                                        StructureType::stSquare
                                       }
